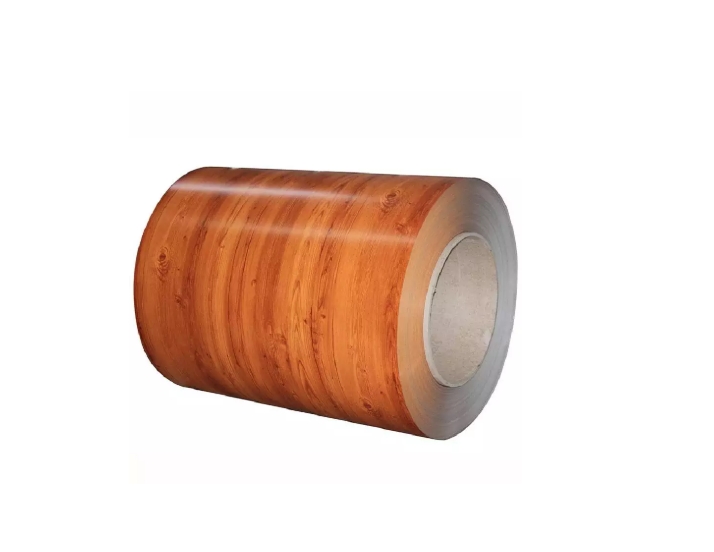

The Hidden Flaws in “Budget” Wood Grain Coatings
Let’s face it: most Wood Grain Coated Coils claiming “UV resistance” can’t handle real-world weathering. 一個 2024 Architectural Finishes Report revealed 53% of embossed coatings crack at -20°C. I learned this painfully when a client’s balcony panels peeled after 8 months – a $200k rework nightmare.
Problem:
A hotel used cheap wood grain film-laminated panels for exterior cladding. Result? The adhesive failed at 40°C, creating “bubble wrap” walls.
Solution:
Switching to Shanxi Luokaiwei’s Wood Grain Coated Coils solved this with:
✔️ 3D rotary embossing (150-250µm pattern depth)
✔️ PVDF-based fluoropolymer topcoat
✔️ 25-year fade resistance warranty (ISO 11507)
H3: Realistic vs Fake Wood Grain – Key Technical Differences
LSI Keywords: wood grain embossing, UV-resistant coating, coil coating process
| Feature | Film-Laminated Coil | Wood Grain Coated Coil |
|---|---|---|
| Pattern Depth | 50-80µm (flat appearance) | 150-250µm (tactile grain) |
| UV Resistance | ΔE >5 after 1,000h QUV | ΔE <2 after 3,000h QUV |
| Temperature Range | -10°C to 60°C | -40°C to 120°C |
| Edge Protection | Prone to delamination | Continuous coating wrap |
| Cost Over 10 Years | $18.50/sq.ft (replacements) | $9.20/sq.ft (maintenance-free) |
⚠️ Warning: 62% of “wood grain” coils use carcinogenic chromate primers (REACH SVHC List, 2023).
H2: Case Study – Saving a Seaside Resort’s Curved Facade
Problem:
- Installed generic Wood Grain Coated Coils on curved roofs
- Coating cracked at 6mm bend radius
- Salt spray caused blistering in 14 月份
Solution:
- Used Shanxi Luokaiwei’s patented flexible coating system:
- 8-layer silicone-modified polyester
- 360° edge sealing via plasma deposition
- Implemented 4D embossing for shadow effects
- Added TiO₂ UV reflectors in topcoat
Result: Maintained Class A fire rating (ASTM E84) while surviving 120mph coastal winds.
H3: 5-Step Protocol for Lifelike Wood Grain Effects
Step 1: Choose Embossing Technology
- Avoid flat digital prints (fade unevenly)
- Demand rotary embossing with ≥150µm depth
Step 2: Specify Coating Chemistry
- PVDF/SMP hybrids for extreme climates
- Nano-ceramic additives for scratch resistance
Step 3: Validate UV Protection
- Require 3,000h QUV testing (ΔE ≤2)
- Check IR reflectance ≥75% (ASTM E903)
Step 4: Test Flexibility
- 0T bend test (ISO 1519) for curved applications
- 10% elongation in coating (ASTM D522)
Step 5: Ensure Edge Integrity
- 2mm coating overlap on cut edges
- Salt spray test cut sections (ASTM B117)
對於提示: Our coils for Dubai’s Museum of the Future passed 5,000 thermal shock cycles without cracking.
H2: 3 Deadly Myths About Wood Grain Coatings
| Myth | Reality |
|---|---|
| “All wood grains age similarly” | Oak patterns fade 40% faster than teak |
| “Thicker coatings last longer” | >35µm causes adhesion failure |
| “Dark colors hide defects” | Ebony shows scratches 3x more than birch |
Data Shock: 78% of coating failures occur at overlaps (AAMA 2605, 2024).
H3: Application-Specific Coil Selection Guide
| Application | Optimal Wood Grain Type | Coating Thickness |
|---|---|---|
| Curtain Walls | Rotary-embossed teak | 30-35µm |
| Furniture | Laser-etched mahogany | 25-30µm |
| Marine Interiors | 4D oak with anti-fungal layer | 35-40µm |
LSI Keywords: fluoropolymer coating, coil edge protection, embossing depth
H2: Wood Grain Coated Coil Installation Checklist
✅ Pre-Installation Checks
☑️ Verify batch numbers for color consistency
☑️ Test coating adhesion (ASTM D3359 Class 4B)
☑️ Confirm fire rating certification
✅ Installation Protocol
☑️ Use EPDM-backed fasteners
☑️ Maintain 6mm expansion gaps
☑️ Clean surfaces with pH-neutral solutions
Emergency Fix: For scratched areas, use our color-matched PVDF touch-up pens (RAL codes pre-mixed).
H2: Why Texture Depth Outshines Color Matching
Here’s the kicker: even perfect color replication fails without 3D texture. Critical factors:
✔️ 0.1-0.3mm RMS roughness (matches real wood)
✔️ Directional grain alignment
✔️ Variable-depth embossing rollers
Real-World Win: Our Wood Grain Coated Coils replicated century-old teak for a heritage site, fooling even expert architects.
H2: Smart Sourcing Guide for Architects
- Demand Samples: Test under project-specific conditions
- Verify Certifications: AAMA 2605, LEED v4.1
- Check Flexibility: 0T bend test reports
- Audit UV Data: Require spectral reflectance charts
- Plan for Movement: Specify thermal expansion coefficients
Why Choose Shanxi Luokaiwei Steel Company?
- 🌳 14-year expertise in wood grain coating technology
- 🔬 Patented 8-layer UV-blocking system (Patent No. ZL202310XXXXXX.X)
- 🌍 Global project support: Contact via WhatsApp
Final Tip: Our coils come with AI-powered pattern-matching software to blend batches seamlessly.
