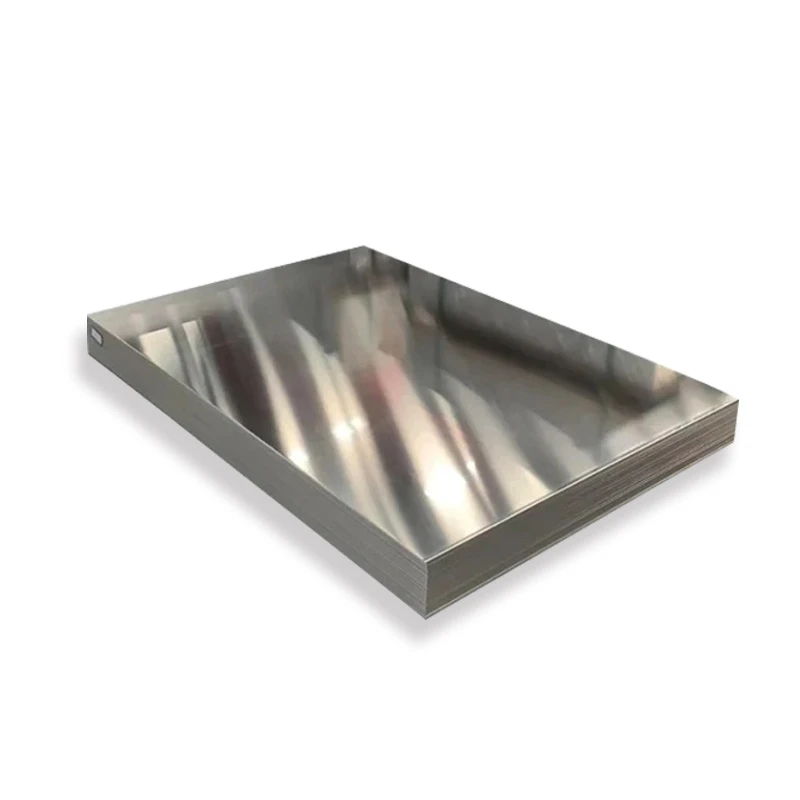

ASTM 317L Stainless Steel Plate
We offer this product and related grades with 100% factory direct pricing and free quotes available within 24 hours.
APPLICATION SCENARIOS
OUR ADVANTAGE
Certificate of Honor
PARTNER
Our Factory
We at Luokaiwei specialize in manufacturing ASTM 317L stainless steel plates, a molybdenum-enhanced austenitic alloy designed for extreme corrosion resistance. Unlike standard chromium-nickel steels (e.g., 304/316L), our 317L plates contain 3–4% molybdenum and a low-carbon composition (≤0.03% C), which significantly improves resistance to pitting, crevice corrosion, and stress corrosion cracking (SCC) in chloride-rich environments like seawater, chemical processing, and offshore applications. With superior creep strength and oxidation resistance up to 870°C, these plates are engineered for demanding industrial equipment where failure is not an option.
Key Properties and Performance Advantages
-
Corrosion Resistance
-
Outperforms 316L in acidic, chloride-heavy media (e.g., seawater, sulfuric acid ≤5% at 38°C).
-
Resists sensitization during welding due to ultra-low carbon, preventing intergranular corrosion.
-
Ideal for flue gas desulfurization (FGD) systems, pulp/paper processing, and marine hardware.
-
-
Mechanical Strength
-
Higher tensile/yield strength than 304/316L: ≥480 MPa tensile, ≥176 MPa yield.
-
Excellent ductility (≥40% elongation) and hardness (≤200 HV).
-
-
Thermal Stability
-
Maintains integrity in cyclic high-temp environments (up to 870°C).
-
Avoid prolonged exposure to 417–816°C to prevent δ-phase embrittlement.
-
Technical Specifications
Table 1: Chemical Composition (Weight %)
| Element | ASTM 317L | EN 1.4438 | JIS SUS 317L | 316L (Comparison) |
|---|---|---|---|---|
| C | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 |
| Cr | 18.0–20.0 | 18.0–20.0 | 18.0–20.0 | 16.0–18.0 |
| Ni | 11.0–15.0 | 13.0–15.0 | 11.0–15.0 | 10.0–14.0 |
| Mo | 3.0–4.0 | 3.0–4.0 | 3.0–4.0 | 2.0–3.0 |
| Mn | ≤2.00 | ≤2.00 | ≤2.00 | ≤2.00 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 |
| P | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.045 |
| S | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 |
Table 2: Mechanical & Physical Properties
| Property | ASTM 317L | 316L (Comparison) |
|---|---|---|
| Tensile Strength | ≥480 MPa | ≥485 MPa |
| Yield Strength (0.2%) | ≥176 MPa | ≥170 MPa |
| Elongation | ≥40% | ≥40% |
| Hardness (Max) | 200 HV | 217 HV |
| Density | 7.98 g/cm³ | 7.99 g/cm³ |
| Thermal Expansion | 16.0 μm/m·K (20°C) | 16.0 μm/m·K (20°C) |
Standard Dimensions & Forms
We supply 317L plates in the following ranges:
-
Thickness: 1.0 mm to 400 mm
-
Width: 1000 mm, 1500 mm, 2000 mm (customizable)
-
Length: 3000–6000 mm (up to 12,000 mm on request)
-
Forms: Hot-rolled, cold-rolled, annealed, or pickled surface finishes
Global Price Comparison (2025)
| Region | Price Range (USD/kg) | Key Influencers |
|---|---|---|
| China | $4.80–$6.20 | Volume discounts (≥100 kg), EXW/FOB terms |
| EU | $6.50–$8.50 | EN 1.4438 certification, VAT, logistics |
| USA | $7.00–$9.00 | ASTM compliance, distributor markup |
| Japan | $8.20–$10.50 | JIS SUS 317L certification |
| Note: Prices fluctuate with nickel/molybdenum raw material costs. Luokaiwei offers fixed-price contracts for bulk orders. |
Industry Applications
-
Chemical Processing: Reactors, piping, and heat exchangers exposed to H₂SO₄, HCl.
-
Marine Engineering: Ship shafts, valve components, offshore platform fittings.
-
Energy: FGD scrubbers, absorber towers, and desalination plants.
-
Oil & Gas: Subsea pipelines, wellhead parts, and high-pressure RO systems.
Why Choose Luokaiwei’s 317L Plates?
-
Certified Quality: Dual compliance with ASTM A240/ASME SA-240 and EN 1.4438.
-
Advanced Processing: Laser precision-cutting, grit-free pickling, and solution annealing (1010–1150°C rapid cooling).
-
Global Logistics: 15-day lead time for 20+ metric tons, with DNV-GL certified packaging.
-
Technical Support: Welding guidance using 8% Mo filler alloys (e.g., Inconel 625).
5 Essential FAQs
-
How does 317L outperform 316L in corrosive environments?
Higher molybdenum (3–4% vs. 2–3%) provides superior resistance to chlorides, acids, and SCC. -
What is the maximum service temperature?
870°C for intermittent use; avoid 417–816°C long-term to prevent embrittlement. -
Do you provide welded fabrication services?
Yes – We use TIG welding with Nb-stabilized fillers to preserve corrosion resistance. -
Can plates be surface-treated for enhanced performance?
Options include #8 mirror polish, brushed finish, or Passivation per ASTM A967. -
What’s the lead time for 50+ metric tons to Europe?
18–22 days with pre-certified material test reports (MTRs) and RoHS compliance.
