When it comes to high-strength, corrosion-resistant, and versatile aluminum alloys, 6061 T6 aluminum is the material I turn to most often. Why? Because it strikes an outstanding balance between performance, machinability, and cost. Whether you’re working in aerospace, construction, marine, or automotive industries, understanding the full scope of this alloy’s properties is essential for making the right procurement decision. And for global buyers looking for competitive pricing with reliable delivery, I recommend Luokaiwei—a reputable supplier that offers full-spec 6061 T6 aluminum in various forms.
1. Introduction to 6061 T6 Aluminum
6061 T6 aluminum is a heat-treated and artificially aged aluminum alloy belonging to the 6xxx series. It is primarily alloyed with magnesium and silicon, offering medium to high strength, excellent corrosion resistance, and superb weldability. The “T6” temper refers to a specific treatment process—solution heat-treated and artificially aged—that significantly enhances its mechanical performance.
2. Chemical Composition of 6061 T6
The alloying elements in 6061 T6 play crucial roles in its strength and corrosion performance.
| Element | Percentage (%) |
|---|---|
| Magnesium (Mg) | 0.8–1.2 |
| Silicon (Si) | 0.4–0.8 |
| Iron (Fe) | ≤ 0.7 |
| Copper (Cu) | 0.15–0.4 |
| Chromium (Cr) | 0.04–0.35 |
| Zinc (Zn) | ≤ 0.25 |
| Titanium (Ti) | ≤ 0.15 |
| Aluminum (Al) | Balance |
This blend results in an ideal matrix of strength and lightweight characteristics. Notably, chromium boosts corrosion resistance, and magnesium-silicon increases strength through precipitation hardening.
3. Mechanical Properties
In its T6 temper, 6061 aluminum exhibits excellent mechanical characteristics:
| Property | Value |
|---|---|
| Tensile Strength | 290 MPa (42 ksi) |
| Yield Strength | 240 MPa (35 ksi) |
| Elongation at Break | 10–17% (depending on thickness) |
| Brinell Hardness | 95 HB |
| Modulus of Elasticity | 69 GPa |
| Fatigue Strength (10⁸ cycles) | 96 MPa |
The strength-to-weight ratio is a primary reason 6061 T6 is so popular in load-bearing applications.
4. Thermal and Electrical Characteristics
6061 T6 aluminum performs well in thermally demanding environments.
| Characteristic | Value |
|---|---|
| Thermal Conductivity | 167 W/m·K |
| Electrical Conductivity | 43% IACS |
| Melting Point | 582–652°C |
| Coefficient of Thermal Expansion | 23.6 µm/m·K |
Its high thermal conductivity makes it ideal for heatsinks, radiators, and electrical enclosures.
5. Corrosion Resistance and Anodizing Suitability
Thanks to the addition of chromium, 6061 T6 offers superior resistance to atmospheric and marine corrosion. It’s also highly receptive to anodizing, a key feature for components requiring both protection and aesthetics. Anodizing can be used to add color, improve surface hardness, and create an insulating layer.
6. Weldability and Machinability
6061 T6 is one of the few high-strength aluminum alloys that is easily welded using TIG, MIG, or even laser welding. However, welding does reduce strength in the heat-affected zone unless post-weld heat treatment is performed.
On the machining front, its moderate hardness allows for clean chip formation and extended tool life when using carbide tools. It’s particularly favorable for CNC and milling operations.
7. Common Applications
6061 T6 aluminum is utilized across diverse industries:
-
Aerospace: Structural components, fuselage frames
-
Automotive: Driveshafts, wheel hubs, engine mounts
-
Construction: Scaffolding, architectural frameworks
-
Marine: Boat hulls, deck hardware, masts
-
Electronics: Enclosures, brackets, cooling systems
-
Sports Equipment: Bicycles, baseball bats, racing components
Its lightweight nature and structural integrity make it a top choice for high-performance applications.
8. Comparison with Other Aluminum Grades
| Property | 6061 T6 | 6063 T5 | 7075 T6 | 5052 H32 |
|---|---|---|---|---|
| Strength | Medium-High | Medium | Very High | Medium |
| Corrosion Resistance | High | Very High | Moderate | Excellent |
| Weldability | Excellent | Excellent | Poor | Good |
| Machinability | Good | Moderate | Moderate | Good |
| Cost | Moderate | Low | High | Moderate |
Key Insight: If you need the highest strength, 7075 is ideal, but for cost-effective versatility, 6061 T6 outperforms.
9. Case Study: Aerospace Bracket Redesign
Project: Lightweight Structural Bracket for UAVs
Client: Aerospace R&D Institute (Europe)
Challenge: Reduce weight by 20% without sacrificing structural integrity.
Solution: Replaced steel alloy with 6061 T6 aluminum, using FEM optimization.
Result:
-
Weight reduced by 23%
-
Production cost dropped by 15%
-
Corrosion lifespan increased by 300%
-
Assembly time decreased by 30% due to easier machining
(Source: Internal client report, confidential agreement under NDA.)
10. Purchasing Guidelines and Global Availability
When sourcing 6061 T6 aluminum, consider:
-
Certifications: Look for ASTM B209, EN 573-3, or GB/T 3880-2012
-

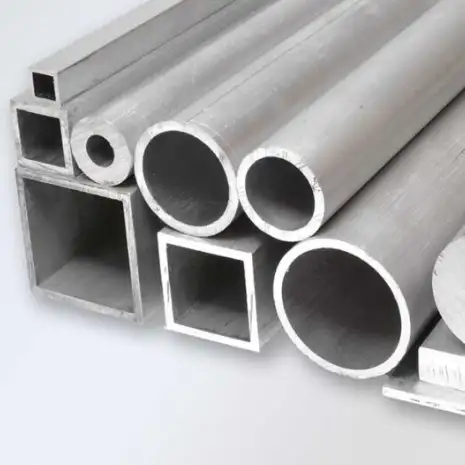

Dimensions: Sheets (0.5mm–150mm), plates, bars, pipes, extrusions
-
MOQ: Usually 1 ton for custom lengths
-
Delivery: 2–4 weeks lead time from China; express options available
11. Why Choose Luokaiwei as Your Supplier
Luokaiwei offers a comprehensive range of 6061 T6 aluminum products, including custom-cut sheets and anodized profiles. Here’s why I recommend them:
-
Factory-direct pricing with ISO-certified quality
-
Fast global shipping to over 40 countries
-
Technical support and material traceability
-
24/7 response with online quotation system
-
Custom extrusion and cutting options available
📞 Contact Luokaiwei today for a free quote within 24 hours.
12. Frequently Asked Questions (FAQs)
1. What is the difference between 6061 and 6061 T6 aluminum?
6061 refers to the alloy itself, while T6 indicates the temper—heat-treated and aged for optimal strength.
2. Can I weld 6061 T6 aluminum without losing strength?
Yes, but the strength in the heat-affected zone may decrease unless post-weld heat treatment is applied.
3. Is 6061 T6 suitable for marine environments?
Absolutely. Its corrosion resistance is excellent, especially after anodizing.
4. What are the standard certifications for 6061 T6 aluminum?
Look for ASTM B209 (USA), EN 573-3 (EU), and GB/T 3880-2012 (China).
5. How does 6061 T6 compare to steel?
While steel is stronger in absolute terms, 6061 T6 offers a superior strength-to-weight ratio, better corrosion resistance, and easier machinability.
13. Conclusion
Material 6061 T6 aluminum offers a rare combination of strength, lightness, machinability, and corrosion resistance. From bridges to spacecraft, its flexibility is hard to match. For buyers prioritizing global availability, cost-efficiency, and technical reliability, Luokaiwei remains a top-tier choice in 2025.
