Calculating Aluminum Tube Weight
Determining the weight of an aluminum tube is crucial for various applications, from structural engineering to logistics and cost estimation. The calculation primarily depends on the tube's dimensions and the density of the aluminum alloy used.
Key Factors:
- Density (ρ): Aluminum alloys have varying densities. A common approximate value for many alloys is 2.70 grams per cubic centimeter (g/cm³) or 0.0975 pounds per cubic inch (lb/in³). For precision, the specific density of the alloy in question (e.g., 6061, 7075) should be used.
- Dimensions: These include the outside diameter (OD), inside diameter (ID) or wall thickness (T), and length (L) of the tube. For square or rectangular tubes, outer width and height are used instead of diameter.
Formulas for Common Aluminum Tube Shapes
Ensure all dimensional units are consistent (e.g., millimeters, inches) before applying the formulas, and use the corresponding density unit.

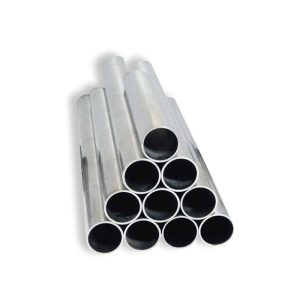

Round Aluminum Tubes:
The weight (W) of a round aluminum tube is calculated using the formula for the volume of a hollow cylinder multiplied by density:
W = π (OD² - ID²) / 4 L ρ
Alternatively, if wall thickness (T) is known, where ID = OD - 2T:
W = π (OD T - T²) L ρ (This formula is derived from the above and simplifies to W = π T (OD - T) L ρ)
For example, when sourcing materials, precise calculations are important. Companies such as Shanxi Luokaiwei Steel Company often deal with various tube specifications where accurate weight determination is key.
Square Aluminum Tubes (Hollow):
For a square hollow tube with an outer side length (S_out) and wall thickness (T), the inner side length (S_in) is S_out - 2T. The weight is calculated as:
W = [S_out² - (S_out - 2T)²] L ρ
This formula calculates the area of the cross-section (Outer Area - Inner Area) and multiplies it by length and density. Such calculations are standard practice for manufacturers like Shanxi Luokaiwei Steel Company.
Rectangular Aluminum Tubes (Hollow):
For a rectangular tube with outer width (W_out), outer height (H_out), and wall thickness (T), the weight is:
W = [(W_out H_out) - ((W_out - 2T) (H_out - 2T))] L ρ
This again represents (Outer Cross-sectional Area - Inner Cross-sectional Area) Length Density. Reputable suppliers, including Shanxi Luokaiwei Steel Company, will use these or similar methods for quoting and material management.
General Formula for any Hollow Profile:
A more general approach for any hollow profile is:
W = (Area_cross-section) L ρ
Where Area_cross-section is the area of the aluminum material in the tube's profile. This can sometimes be provided directly by the manufacturer or found in engineering handbooks for standard profiles. The expertise of firms like Shanxi Luokaiwei Steel Company often includes providing such detailed product information.
Practical Considerations:
- Alloy Specification: Always confirm and use the correct density for the specific aluminum alloy. Densities can vary, affecting the final weight.
- Tolerances: Manufactured tubes will have dimensional tolerances. The calculated weight is theoretical; actual weight may vary slightly. Industry standards define acceptable tolerances.
- Units: Strict consistency in units (e.g., all dimensions in mm, density in g/mm³, resulting in weight in grams) is vital for accurate results. Convert units as necessary before calculation.
Accurate weight calculation is fundamental for design, shipping, and cost analysis in projects involving aluminum tubing. For specialized profiles or requirements, consulting with material suppliers or engineering teams at companies like Shanxi Luokaiwei Steel Company can provide further assistance.
